N Connectors Female Stright 4Hole Flange Mount With 15mm
N coaxial connectors are high-quality and reliable.
For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a preset maximum torque.
The butted outer contact provides for exceptional frequency ranges of up to 11 GHz.

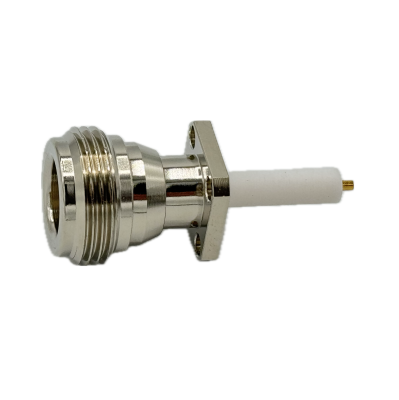

N-232141(12.7)
DESCRIPTION
Specifications
| Impedance : | 50ohm |
| Frequency range : | DC to 11 GHz |
| Return loss : | ≥35 dB, DC to 2.5 GHz |
| Insertion loss : | ≤0.10 X f[GHz] dB |
| Gender : | Female |
| Orientation : | Straight |
| Centre Contact Termination | Soldered |
