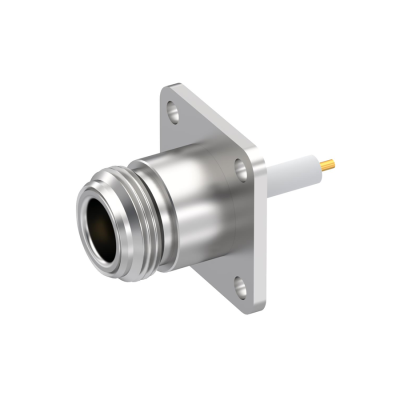

N-232141(25.4)
N Connectors Female Stright 4Hole Flange Mount With 15mm
N coaxial connectors are high-quality and reliable.
For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a preset maximum torque.
The butted outer contact provides for exceptional frequency ranges of up to 11 GHz.
DESCRIPTION
Specifications
| Impedance : | 50ohm |
| Frequency range : | DC to 11 GHz |
| Return loss : | > 20d8, 4-8GHz |
| Insertion loss : | < 0.35d8, DC-8GHz |
| Gender : | Female |
| Orientation : | Straight |
| Centre Contact Termination | Soldered |
