SMA-132110E

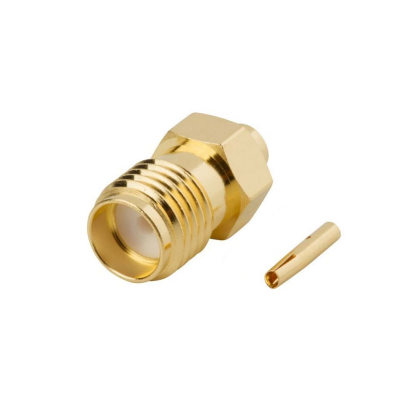

SMA Connectors Female Stright Bulkhead For RG402 Cable
SMA coaxial connectors are high-quality and reliable.
For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a preset maximum torque.
The butted outer contact provides for exceptional frequency ranges of up to 18 GHz.
DESCRIPTION
Specifications
| Impedance : | 50ohm |
| Frequency range : | DC to 18 GHz |
| VSWR : | < 1.04 + 0.03 x f [GH] |
| Insertion loss : | < 0.10X f[GHz] dB |
| Gender : | Female |
| Orientation : | Straight |
| Centre Contact Termination | Soldered |
| Outer Contact Termination | Soldered |
| Suitable cables: | UT141, RG402 |
