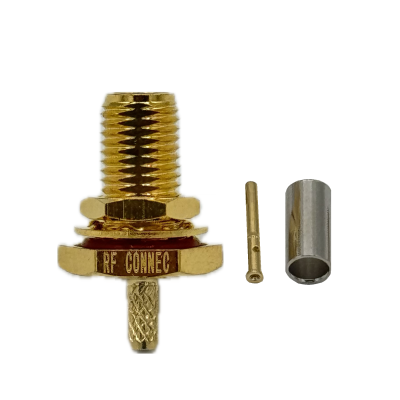

SMA Connectors Female Straight Crimp Bulkhead For RG316 Cable
SMA coaxial connectors are high-quality and reliable.
For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a preset maximum torque.
The butted outer contact provides for exceptional frequency ranges of up to 12.4 GHz.
SMA-112110(R)A
DESCRIPTION
Specifications
| Impedance : | 50ohm |
| Frequency range : | DC to 12.4 GHz |
| VSWR : | < 1.05 + 0.04 x f [GH] |
| Insertion loss : | < 0.06X f[GHz] dB |
| Gender : | Female |
| Orientation : | Straight |
| Centre Contact Termination | Soldered |
| Outer Contact Termination | Crimped |
| Suitable cables: | RG316,RG174,RG188,LMR100 |
