BNC-111100A

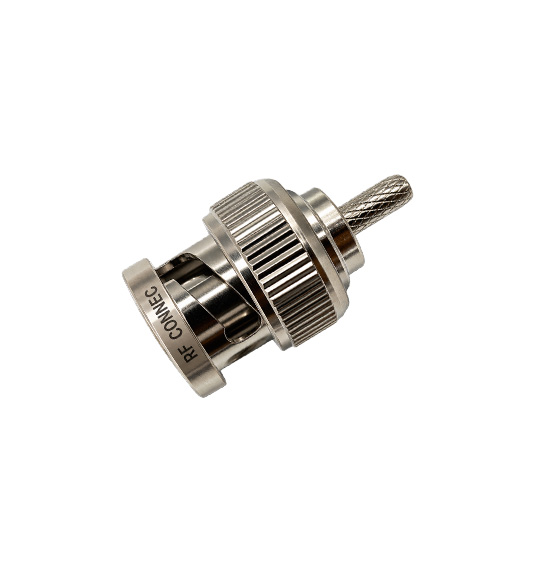

BNC Connectors Male Straight For RG316 Cable
BNC is designed to maintain the characteristic impedance of the cable across the connection, and is made in 50-ohm and 75-ohm versions.
these screw-on locking connectors have a preset maximum torque.
The butted outer contact provides for exceptional frequency ranges of up to 4 GHz.
DESCRIPTION
Specifications
| Impedance : | 50ohm |
| Frequency range : | DC to 4 GHz |
| VSWR : | < 1.08+0.05Xf[GHz] |
| Insertion loss : | <0.08 X)t [GHz] dB |
| Gender : | Male |
| Orientation : | Straight |
| Centre Contact Termination | Soldered |
| Outer Contact Termination | Crimped |
| Suitable cables: | RG316,RG174,RG188,LMR100 |
