TNC Connectors Female Stright 4Hole Flange Mount
TNC coaxial connectors are high-quality and reliable.
For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a preset maximum torque.
The butted outer contact provides for exceptional frequency ranges of up to 10 GHz.

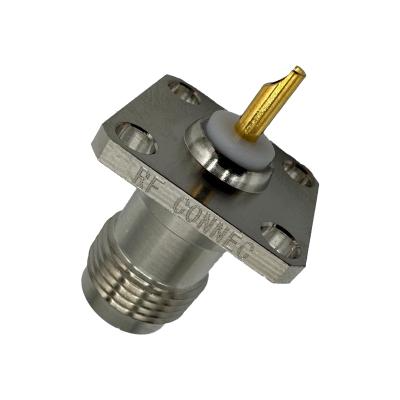

TNC-232143(17.5)
DESCRIPTION
Specifications
| Impedance : | 50ohm |
| Frequency range : | DC to 10 GHz |
| VSWR : | ≤1.10 + 0.05 X f[GHz |
| Insertion loss : | ≤ 0.20 X f[GHz] dB |
| Gender : | Female |
| Orientation : | Straight |
| Centre Contact Termination | Soldered |
