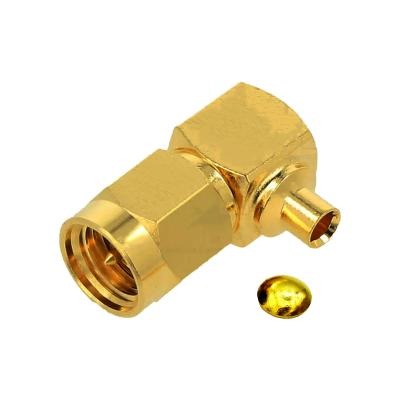

SMA-131200J
SMA Connectors Male Right Angle For UT047 Cable
SMA coaxial connectors are high-quality and reliable.
For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a preset maximum torque.
The butted outer contact provides for exceptional frequency ranges of up to 18.0 GHz.
DESCRIPTION
Specifications
| Impedance : | 50ohm |
| Frequency range : | DC to 18.0 GHz |
| VSWR : | < 1.05 + 0.02 x f [GH] |
| Insertion loss : | < 0.35X f[GHz] dB |
| Gender : | Male |
| Orientation : | Right Angle |
| Centre Contact Termination | Soldered |
| Outer Contact Termination | Soldered |
| Suitable cables: | 047, 670-047,680-047,SR047 |
