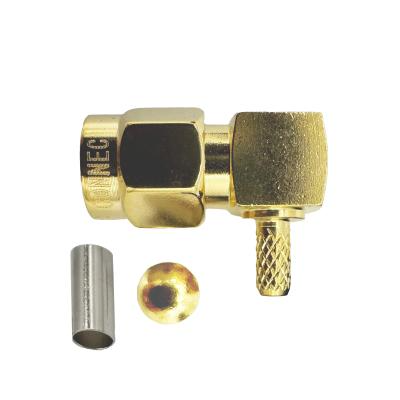

SMA-111200A

SMA Male Right-Angle Connector for RG316 Cable.

This high-quality SMA coaxial connector is designed to deliver reliable RF performance, excellent mechanical stability, and long-term durability. The screw-on coupling mechanism ensures a secure connection and consistent electrical performance. For enhanced reliability and extended service life, the connector features a precision-engineered coupling mechanism with a preset maximum tightening torque. Its butt-contact outer conductor design supports operating frequencies of up to 12.4 GHz.

dt icon3
RoHS
dt icon2
REACH
dt icon1
Datasheet

DESCRIPTION

Specifications
Impedance :50ohm
Frequency range :DC to 12.4 GHz
VSWR :< 1.15 + 0.04x f [GH]
Insertion loss :< 0.25X f[GHz] dB
Gender :Male
Orientation :Right Angle
Centre Contact TerminationSoldered
Outer Contact TerminationCrimped
Suitable cables:RG316,RG174,RG188,LMR100
