N-112110B

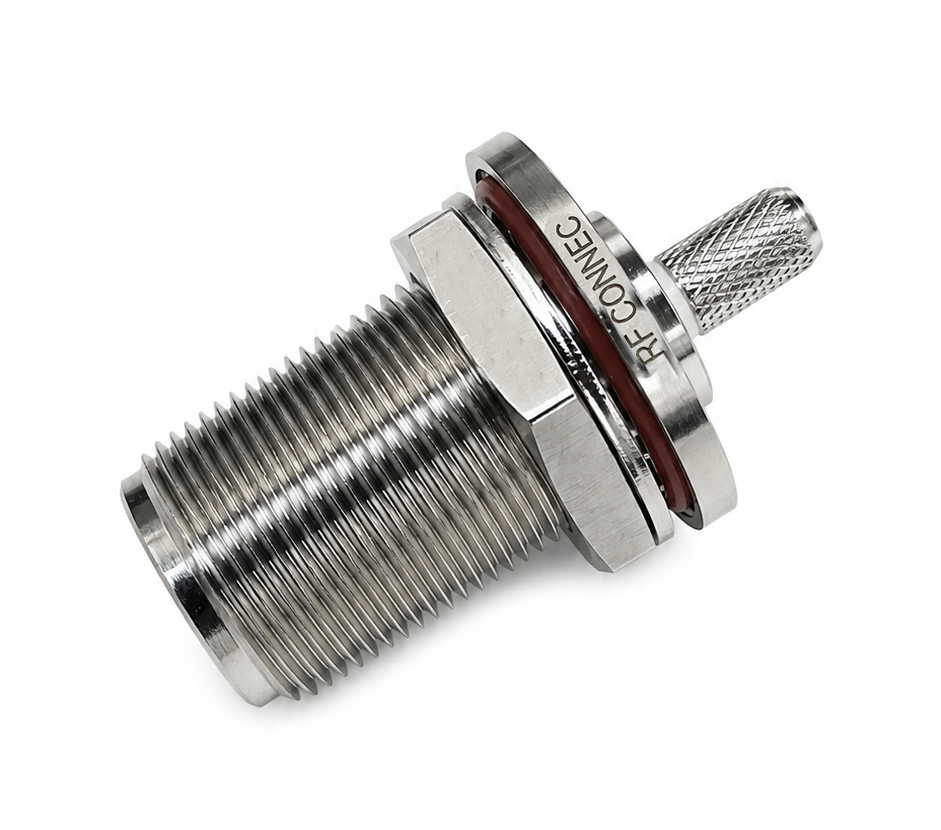

N Connectors Female Straight Crimp Bulkhead For RG58/RG223 Cable

N coaxial connectors are high-quality and reliable.

For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a preset maximum torque.

but today’s common Type N easily handles frequencies up to 8.0 GHz.

dt icon3
RoHS
dt icon2
REACH
dt icon1
Datasheet

DESCRIPTION

Specifications
Impedance : 50ohm
Frequency range : DC to 8.0GHz
VSWR: ≤1.05 + 0.04 Xf[GHz]
Insertion loss : ≤0.15 X[ fGHz] dB
Gender : Female
Orientation : Straight
Centre Contact Termination Soldered
Outer Contact Termination Soldered
Suitable cables: RG142 B/U,RG223/U,RG400 U
