CATEGORY
N_SMA-2214(R)
This adapter is RF coaxial adapter.

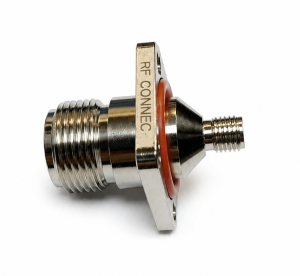

This adapter N-type Female to SMA Female 4Hole Flange Mount Straight Adapter is one of several RF products available from RF CONNEC.
The sides have a N-type Female to SMA Female which provides connection and internal threads,
N-type Female to SMA Female connections are popular in wireless and Wi-Fi applications.
DESCRIPTION
Specifications
| Model | Conector Type1 | Conector Type2 | Flange Type |
| Adapter | N- type Female | SMA Female | 4 Hole With O-Ring |
| Impedance : | 50ohm |
| Frequency range : | DC to 11 GHz |
| VSWR: | ≤ 1.25:1 |
| Insertion loss : | ≤ 0.30 dB, DC-6GHz |
| Orientation : | Straight |
