SMA-111100B

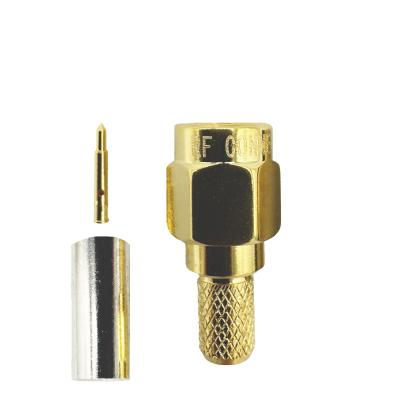

SMA Male Straight Connector for RG58 Cable.

This high-quality SMA coaxial connector is designed to provide reliable RF performance, excellent mechanical stability, and long-term durability. Its precision-engineered screw-on coupling mechanism ensures a secure connection and consistent electrical performance. The connector features a preset maximum tightening torque to ensure reliable mechanical engagement and extend service life. Its butt-contact outer conductor design supports operating frequencies of up to 12.4 GHz.

dt icon3
RoHS
dt icon2
REACH
dt icon1
Datasheet

DESCRIPTION

Specifications
Impedance :50ohm
Frequency range :DC to 12.4 GHz
VSWR :< 1.15 + 0.03x f [GH]
Insertion loss :< 0.20X f[GHz] dB
Gender :Male
Orientation :Straight
Centre Contact TerminationSoldered
Outer Contact TerminationCrimped
Suitable cables:RG58C /U, RG142B/U, RG223/U, RG400/U
