SMA Connectors Male Right Angle For RG58 Cable
SMA coaxial connectors are high-quality and reliable.
For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a preset maximum torque.
The butted outer contact provides for exceptional frequency ranges of up to 12.4 GHz.

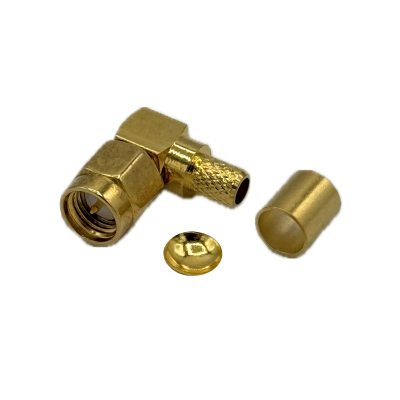

SMA-111200B
DESCRIPTION
Specifications
| Impedance : | 50ohm |
| Frequency range : | DC to 12.4 GHz |
| VSWR : | < 1.15 + 0.04x f [GH] |
| Insertion loss : | < 0.25X f[GHz] dB |
| Gender : | Male |
| Orientation : | Right Angle |
| Centre Contact Termination | Soldered |
| Outer Contact Termination | Crimped |
| Suitable cables: | RG58C /U, RG142B/U, RG223/U, RG400/U |
