SMA-232122

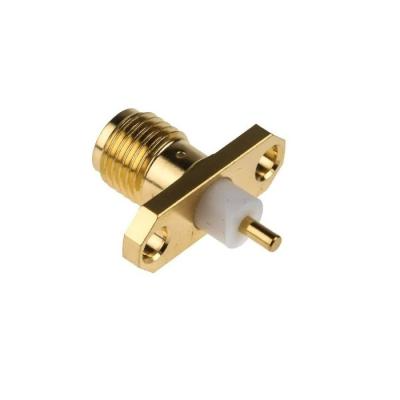

SMA Female Straight Connector, 2-Hole Flange Mount, with 5 mm PTFE Insulator Length.

This high-quality SMA coaxial connector is designed to provide reliable RF performance, excellent mechanical stability, and long-term durability. The screw-on coupling mechanism ensures a secure connection and consistent electrical performance. For enhanced reliability and extended service life, the connector features a precision-engineered coupling mechanism with a preset maximum tightening torque. Its butt-contact outer conductor design supports operating frequencies of up to 18 GHz.

dt icon3
RoHS
dt icon2
REACH
dt icon1
Datasheet

DESCRIPTION

Specifications
Impedance : 50ohm
Frequency range : DC to 18 GHz
VSWR : < 1.04 + 0.02x f [GH]
Insertion loss : < 0.08X f[GHz] dB
Gender : Female
Orientation : Straight
Centre Contact Termination Soldered
