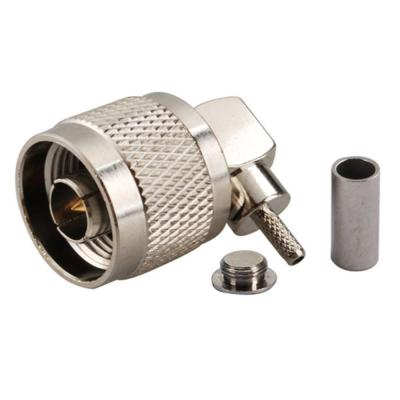

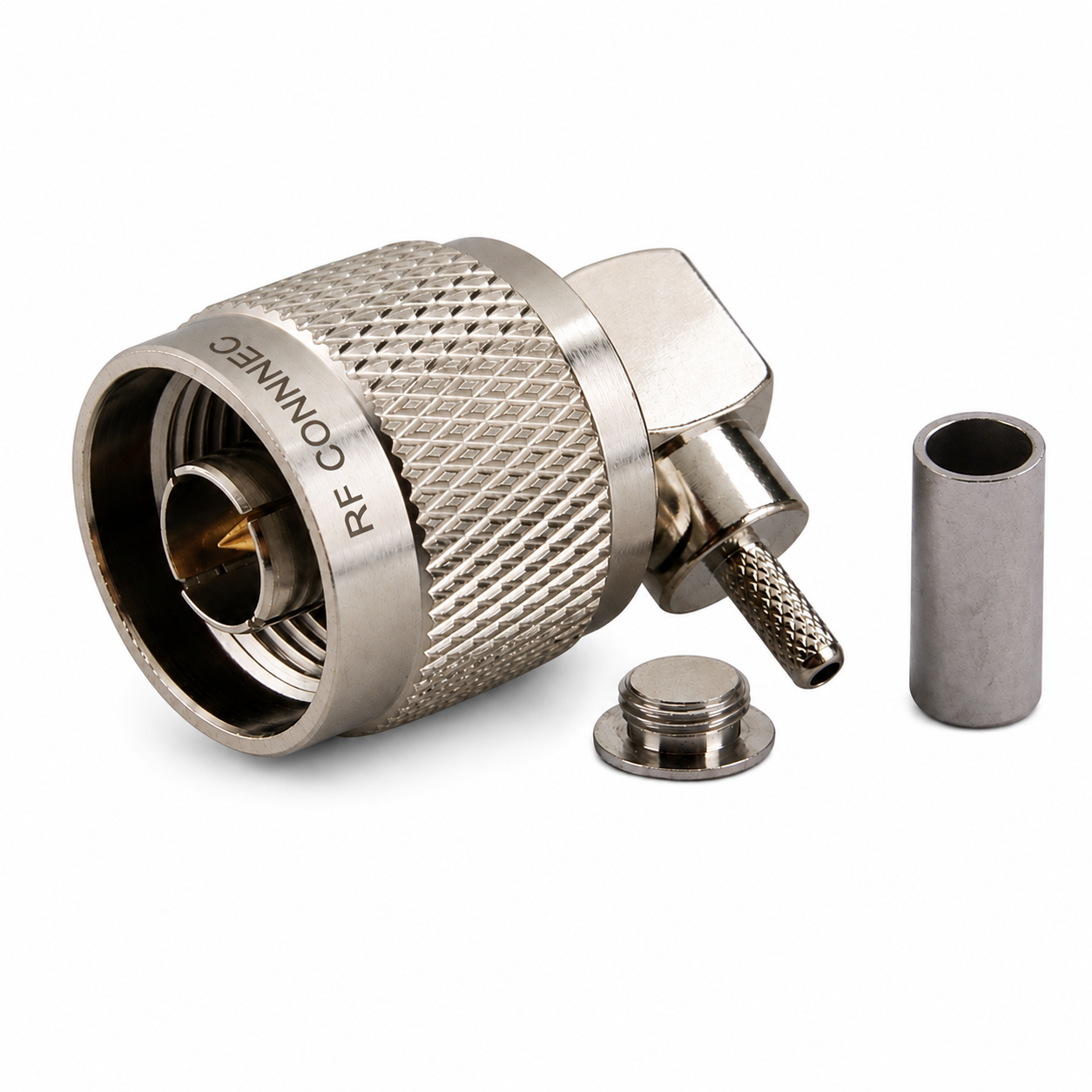

N Connectors Male Right Angle For RG316 Cable
N coaxial connectors are high-quality and reliable.
the connector was designed to carry signals at frequencies up to 1 GHz in military applications,
but today’s common Type N easily handles frequencies up to 11 GHz.
N-111200A
DESCRIPTION
Specifications
| Impedance : | 50ohm |
| Frequency range : | DC to 11 GHz |
| Return loss: | >30dB, DC-2GH |
| Insertion loss : | < 0.20X f[GHz] dB |
| Gender : | Male |
| Orientation : | Right Angle |
| Centre Contact Termination | Soldered |
| Outer Contact Termination | Crimped |
| Suitable cables: | RG174/U,RG316/U |
