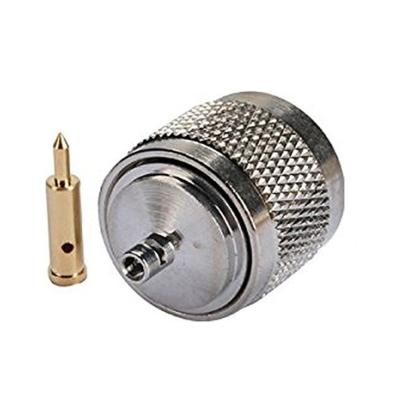

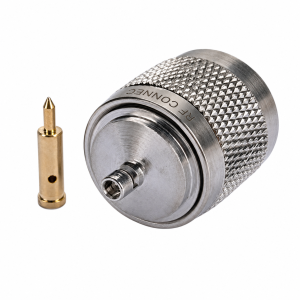

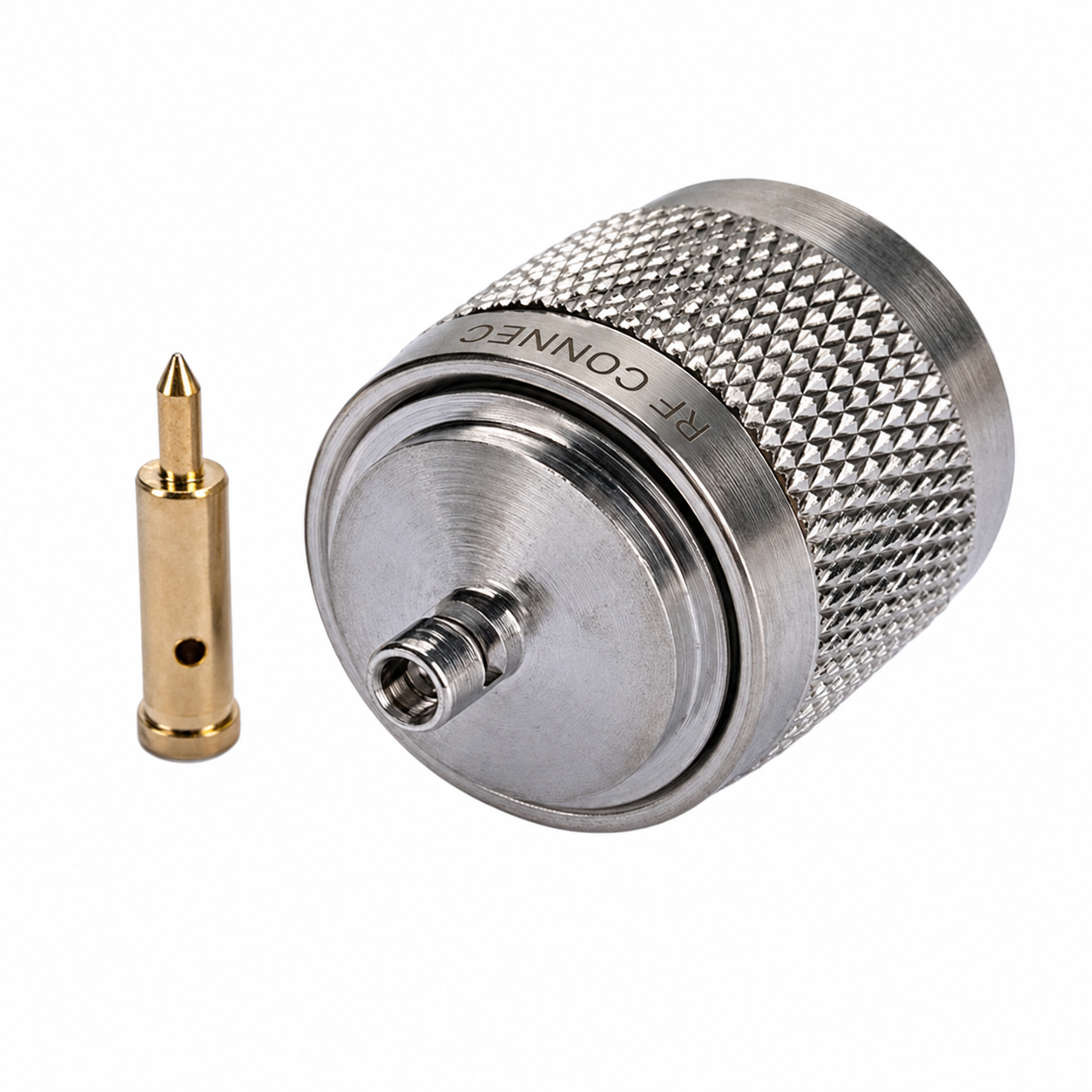

N Connectors Male Straight For RG405 Cable
N coaxial connectors are high-quality and reliable.
the connector was designed to carry signals at frequencies up to 1 GHz in military applications,
but today’s common Type N easily handles frequencies up to 11 GHz.
N-131100F
DESCRIPTION
Specifications
| Impedance : | 50ohm |
| Frequency range : | DC to 11 GHz |
| Return loss: | >28d8, DC to 2.5 GHz |
| Insertion loss : | < 0. 05d8, DC -4GHz |
| Gender : | Male |
| Orientation : | Straight |
| Centre Contact Termination | Soldered |
| Outer Contact Termination | Soldered |
| Suitable cables: | UT086, RG405, 6 70-086, UT-0.085 |
