N_SMA-2210
This adapter is RF coaxial adapter.

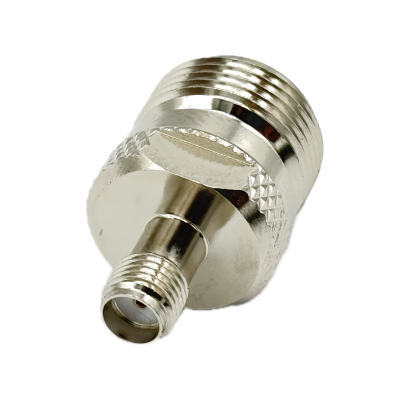

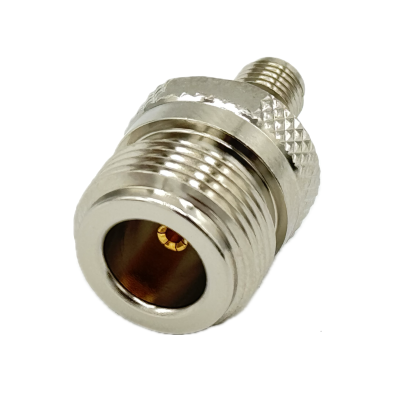

This adapter N-TYPE Female to SMA Female Straight Adapter is one of several
RF products available from RF CONNEC.
The sides have a N-TYPE Female to SMA Female which provides connection and internal threads.
DESCRIPTION
Specifications
| Model | Conector Type1 | Conector Type2 | Flange Type |
| Adapter | N-TYPE Female | SMA Female | None |
| Impedance : | 50ohm |
| Frequency range : | DC to 11 GHz |
| VSWR : | < 1.20 |
| Insertion loss : | < 0.15d8 |
| Orientation : | Straight |
