SMA_SMA-2210
This adapter is RF coaxial adapter.

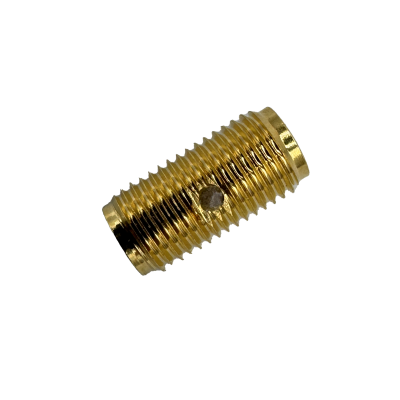

This adapter SMA Female to SMA Female Straight Adapter is one of several RF products available from RF CONNEC.
The sides have a SMA Female to SMA Female which provides connection and internal threads,
SMA connections are popular in wireless and Wi-Fi applications.
DESCRIPTION
Specifications
| Model | Conector Type1 | Conector Type2 | Shape | Flange Type |
| Adapter | SMA Female | SMA Female | Stright | None |
| Impedance : | 50ohm |
| Frequency range : | DC to 18.0 GHz |
| VSWR : | < 1.03+0.01 X f[GH] |
| Insertion loss : | < 0.05 x f[GHz] dB |
| Orientation : | Straight |
