CATEGORY
This adapter is RF coaxial adapter.
This adapter SMA Female to SMA Female 4Hole Flange Mount Straight Adapter is one of several RF products available from RF CONNEC.
The sides have a SMA Female to SMA Female which provides connection and internal threads,
SMA connections are popular in wireless and Wi-Fi applications.

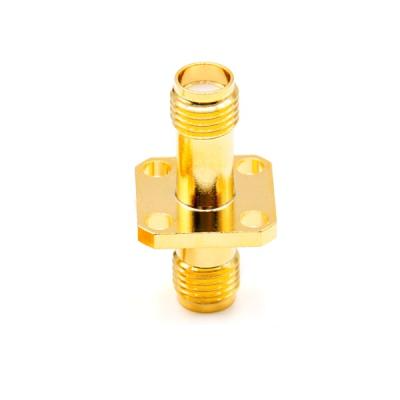

SMA_SMA-2214(22.2)
DESCRIPTION
Specifications
| Model | Conector Type1 | Conector Type2 | Shape | Flange Type |
| Adapter | SMA Female | SMA Female | Stright | 4 Hole |
| Impedance : | 50ohm |
| Frequency range : | DC to 18.0 GHz |
| VSWR : | < 1.03 + 0.02 X f [GHz] |
| Insertion loss : | <0.10 X f[GHz]dB |
| Orientation : | Straight |
| Length : | 22.2 mm |
